24 April 2013

Outlining Your House in RGB Lights - Detailed Instructions

Updated 25-Aug-2015 with Brilliant Bubs and Updated Spredsheet

In our prior blog article – Outlining Your House in RGB Lights – A Primer we covered the high level decisions that needed to be made when designing system for RGB lights on the fascia of a house.  This article, unlike the first, provides in-depth information on how to layout and spec such a design.  Not included in this article are the specific step-by-step instructions on how to wire controllers, wire power supplies, how to solder or any other physical setup – but don’t worry – that is actually the easy part, it is the design that most people find the more complicated part.  I should also mention, just as our blog article No Free Rides – Cheap Isn’t Free When It Comes to RGB – there isn't an “off the shelf” solution for doing this – each house, each display, each budget and each level of skill is different and the only person that knows all these requirements is yourself.  So, expect to spend some time doing research for a complete solution.

One last thing - if you have not already done so, be sure to start with our RGB Projects Primer post.  This post covers all the major steps you need to consider when designing a pixel based project.
Ok, so let’s get started.  We have selected the house of Nathanial R. to build this real-world sample project from.  This house (shown below) has many areas that need to be covered – 19 in all, so this house will serve as a good example of how a house with many complex roof lines can be handled.


Design – Always the first step

Often people try to determine which hardware will fit their house without first starting with a design.  The absolute best method is to always start with a design prior to purchasing anything.  Design can comprise many aspects but in essence it is – What do you what your display to look like?
Normally you would look at the entire house/display and determine all the elements that you wanted to add – mini-trees, megatrees, bush lights, candy canes, cutouts, garland, icicles, borders, etc. and then create separate “projects” to focus on each one.  In this case we are focusing on a sub-element of Nathanial’s display – to outline the fascia of his house with RGB pixel lights.  He has already determined that he likes this look but just isn't sure what is required and the issues involved in the project.
So, start this project by going outside and taking a photo of your house from the approximate location(s) that your viewing audience will view your display.  These photos will serve to allow you to sketch out your design and to also layout measurements, cable routing locations, controller locations and other relevant information.


Smart or Dumb?

This is the first major intersection on your project – you need to determine if you want to go the dumb RGB or Smart RGB route.  Here are some of the pros and cons of each for this project:

RGB Smart/Intelligent/Pixel
RGB Dumb/Basic
Lighting Costs
Smart RGB modules and strip are about 10-30% more expensive than dumb of the same physical items (modules, nodes, strip).
Lights are about 10-30% cheaper than Smart.
Lighting Functionality
Smart RGB lights can be controlled either by individual lights or in small sections (usually less than 3” each).
Dumb RGB lights cannot be controlled individually – all lights attached to a controller will be the same color and intensity.
Controller Costs
Smart RGB controllers are about 50% to 100% more but generally you need fewer since pixels can be used with power injection.
Controllers are less expensive but you are likely to need more of them along with more power wiring.  Long runs are extremely complicated to perform with dumb RGB.
Controller Functionality
Smart pixel controllers are able to control each light or small section of lights individually.
Dumb controllers can only control a string of lights, not individual lights within the string.

Today, in 2015, it is hard to make a good case from going with dumb RGB for a house outline in all but  few cases.  Pixel solutions are easier setup than dumb and the cost differences are minimal when all other factors are included.  If you are going dumb RGB outline, you should know why it was selected over smart.

A few caveats on this – some people would design this using pixels and using either functions in their software or controller, would limit the control to sections or controller outputs.  Some pixel controllers have an option to control an entire length of pixels with just three DMX channels instead of each pixel with three individual DMX channels.  This allows simplicity in setup and sequencing at the trade-off control but still allows moving to a full pixel display later on down the road when you are ready to do so.
For simplicity and brevity, we will be focusing only on pixels in this case since this is the direction that Nathanial has decided to go - though you will find dumb or basic RGB have many similar design requirements (power, signal) but just slightly different hardware (controllers and lights) than pixels.


House Measurements

An absolute requirement for this project is to determine where you want your RGB lights to be located.  To do this you will first need to determine where you will be installing them and how you will be installing them.  We won’t delve into specific mounting methods as there are just too many options depending on your house constructions and overall look you are going for – such as under soffit “wall washing” instead of fascia mounted or directly viewable RGB lights.  (See our budget PVC pipe mounting method here and our high-end aluminium mounting strip here.)
So, get out your ladder, tape measure, thinking cap and determine the exact length of each section where you wish to place the RGB lights and record it on the photo of your house.  When you are done you should end up with a photo that looks something like this:

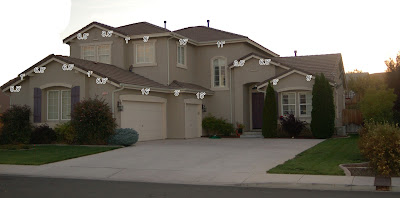

You can see that he has measured each and every section of the fascia that he intends to mount the RGB lights to.
Why does it matter that you are accurate in the measurements you take?  The reason is that, depending on the RGB lights you intend to use, even just several inches of RGB pixel lights could result in 3 to 6 DMX channels and if you miss a few inches here, a few feet there, your final design could be off several dozen or hundreds of channels depending on the size of your display.  This is not to even mention the issues in properly calculating the power consumption.


Selecting RGB LED Types

The next step is to determine the actual type of RGB Pixel LEDs you will be using.  Which pixel type you select depends on a number of factors, such as the density of lights and control you want, the amount of cost you want to expend, the type of “look” you are going for and a number of other minor factors.  Let’s go through some of the areas you should be looking at when you select the type of RGB pixels you intend to use:
·         The “look” you want to achieve – There are a variety of different types of pixels on the market – nodes (with and without diffusers), strip and modules.  You need to determine the type of look you want – is it a more retro look like with C7/C9 diffused RGB nodes or do you like the close spacing in strip that offers a more “neon” appearance?
·         Costs – Each different type of RGB light has different costs.  Some of this cost can be a result of a better quality pixel, level of control it offers or density the RGB lights in the pixel.  Typically, strip lighting is always going to be the lowest cost method of getting RGB lighting onto a house outline.
·         Mounting – Each pixel type has a different method of mounting.  Some may be able to use existing mounts such as those based on C7/C9 devices (rare) or they may require a mounting substrate (PVC pipe, 1"x2", etc).  Think about how you will be mounting the type of RGB pixel you select and what effects it will have on the mounting method and the cost of that method.  Also keep in mind how complex it will be to mount and dis-mount the pixels – saving 50 cents per pixel won’t seem like a great deal if it takes you two times as long to mount them.


The Number Crunching

A this point you have now selected the types of lights you want to use and you have collected the lengths of each section on your house that the lights will cover.  The next step is to enter this data into our spreadsheet.  This spreadsheet (requires MS Excel 2007 or later) only requires you to enter each of the lengths (sections) within your project and select the type of light (strip, module, node) you wish to use and it will then output costs, number of RGB and DMX channels and power requirements.  This gets you part of the way toward your final design and it also allows you to play around with different lighting to determine channel counts and costs but it can’t completely design your display because there are just too many factors to take into account.  There are many small but important decisions that need to be made based on the specifics of your house and design.  Here are some of the issues:
·         Location (and type) of controller(s) – There are three basic options for pixel controllers – a centralized controller solution, a de-centralized controller solution and a mixed centralized/de-centralized controller solution.
o   Centralized – These controllers, such as the AlphaPix 4 and AlphaPix 16, are units that take an input of DMX data (over Ethernet using the E1.31 protocol) and output over 4 or 16 outputs (separate strings or DMX universes).  This means that you can hookup a single string of RGB pixels, ranging from 320 (AlphaPix 16) to 680 (AlphaPix 4) pixels per controller output.  There are some issues here though – there is usually a limit to the length of distance between the controller output and the start of your string of lights and these limits vary but are often (with most pixels HolidayCoro sells) around 15 to 20 ft.
o   De-Centralized – These controllers, such as the EasyPix allow you to take an input of DMX data (from a DMX dongle, such as the ActiDongle or from the RS485 output of our AlphaPix controllers (3 on the AlphaPix 16 or 1 on the AlphaPix 4) and output the data to a pixel string, usually up to 170 pixels per controller.
o   Mixed Centralized & De-Centralized – There maybe cases, most often with large houses or wide spaces, where it makes sense to use a mix of these two controller types.
o   Power Management – Just as important as getting a data signal to pixels is getting the proper amount of power to the pixels and there are a myriad of issues involved, such as:
o   Cable/wire gauge – This is a complex issue but it really boils down to ensuring that for the amount of power you will be using, that you have sufficient method to get it to where it is needed and this means using a wire gauge that meets that need.  We've talked about this in our “Technical Guide to RGB Wire Selectionarticle, so we suggest starting there.  Be aware that the wire gauge involved isn't just that leader cable from the power supply to the pixel but the actual gauge of the wire inside the pixels themselves.
o   Power consumption of each pixel (or group of lights that make-up a pixel) – The spreadsheet will help with this calculation but also be aware that there is a limit to the number of pixels that can be run in a continuous length due to power consumption by the pixels themselves.  Some pixels may only be able to be run continuously in lengths of 40, 50 (common in 5v pixel nodes), 100 or they may be able to take a single injection of power at the start and run for a full universe of 170 pixels (510 DMX channels).  For most of HolidayCoro's pixels, you'll find a information on power consumption and length limits before power injection is required.

This is why you see 12v pixels vs. 5v pixels.  A 5v pixel is closer to the actual voltage of the LED and IC chip using the power and thus is more efficient as where 12v has to be “dropped” down by use of a voltage regulator circuit (not as common) or dropping resistors which waste the power.  The trade off is that you generally can run 12v strings of pixels, given the same gauge wire, longer distances than you can 5v pixels without the need to re-inject power as often.  This is an entirely separate and complex discussion.  In general, you'll find it "easier" to work with 12v RGB lighting which is more forgiving than 5v lighting which requires more accurate planning and power management.


The Real World

Now that we've covered many of the basics, we are ready to turn our attention back to Nathanial’s house and start working through the design.  First, we input the data into the spreadsheet (version 2.1 / 25-Aug-2015) and select RGB pixel strip as the type of lighting we want to use (RGB Pixel Strip in this case):

This provides us with some important starting points:
·         The total number of DMX channels is 1,308 and since each DMX universe is 512 (actually 510 for pixels or 3 channels * 170 pixels), we end up with needing 3 universes.
·         We will need a total of 436 RGB sections and/or RGB channels
·         We will need about 324 watts of power
So, now let’s go back to the photo of the house and the location of each section of RGB strip he intends to use:

The first issue we need to address is that with some controllers (does not apply to HolidayCoro AlphaPix controllers) no one continuous length of strip can be more than 170 RGB pixels/channels (510 DMX channels - Red, Green, Blue channels * 170 pixels) in a typical controller.  As a result, we need to look at logical sections that might be a continuous length and determine if they are under 170 RGB channels or less.  If we look at the front section of the garage facing the street, we have a total of 26 linear feet of strip we need to place.  We can see that the spreadsheet has calculated that this is a total of 80 RGB channels – OK, good there, what about if we include the side of the garage over the garage doors at 34 feet.  We get 182 RGB channels – nope, can’t do that, its 12 RGB channels over the output of any single output (170) so our options are to either adjust the lengths and remove a section, or break it down into two sections.  We are going to go with two sections for the garage section – with 80 RGB channels for the front of the garage facing the street and 102 RGB channels for the section of the garage over the garage doors.
We’ll do the same for the top of the house with the sections that are 8.5’ + 8.5’ + 1’ + 9’ + 15’ + 11’ for a total of 53’ linear feet and a total of 160 RGB channels.  Then for the bottom section of the front of the house at 6.5’ + 6.5’ + 9’ + 9’ for a total of 31’ or 94 RGB channels.  So, to summarize, we have the following segments:
·         Garage Front:  80 RGB Channels & 240 DMX channels
·         Garage Entry:  102 RGB Channels & 306 DMX Channels
·         Front House Top:  160 RGB Channels & 480 DMX Channels
·         Front House Bottom:  94 RGB Channels & 282 DMX Channels
You can see these numbers match perfectly to the spreadsheet calculations of 436 RGB channels and 1,308 DMX channels.  Of course this assumes that your controller can handle a total of 170 RGB channels per “output” – adjust as necessary to meet the specific requirements of your pixel controller.

Power Distribution

This is where things can get a little tricky – while we will be selecting a controller that can output a total of 170 RGB channels, that doesn't mean that if we apply power to the start of the strip (in this case), that a sufficient amount of power will make it to the very end.  As power runs down the strip, most of the power is lost to the LEDs using the power and the remainder is lost to the resistance in the strip itself or the wire between modules.  So, we go back to the spreadsheet again and we look at the power consumption for a given grouping of sections.  We get:
·         Garage Front:  60 Watts
·         Garage Entry:  76 Watts
·         Front House Top:  119 Watts
·         Front House Bottom:  70 Watts
Here is where it gets a little grey – you can check with your lighting vendor and they may list voltage drop over a given length of RGB pixel – say, input of 12v, 11.5v at 50 pixels, 8.5v at 100 pixels and 6v at 150 pixels but that isn’t common, so more than likely you’ll need to measure this yourself.  How you do this is:
·         Hookup a section of RGB pixels, say 50 or 100 to your pixel controller
·         Using your sequencing application, the built in test function of your controller or a test tool like xLights, output a solid white to all the lights on the section you are testing.  I’d recommend leaving it on for 15 to 30 minutes to let it warm up, which will result in a slightly higher power drop.
·         Using a multi-meter/VOM, measure the voltage coming directly out of the controller to the lights – record this voltage
·         Again, using the mutli-meter/VOM, measure the voltage coming out the last pixel on the string – record this voltage
You should notice a drop in voltage at the end of the pixel section.  How much of a drop is bad?  Well that depends.  Usually less than 10-20% is ok, over that amount you could run into problems either with a dimming of the lights at the end of the string or in the worst case, if the voltage drops low enough, below that required by the IC chip to operate, your pixels will have “random” failures as the voltage fluctuate from high to below what is required for the IC to operate.  This is why running 12v pixels can sometimes be less fraught with issues than 5v pixels.  For example, look at these hypothetical voltage drop examples:
·         Input:  12v / Output:  7v | 5v total drop – A total drop of 41%
·         Input:  5v / Output: 3v | 2v total drop – A total drop of 40%
So, even though the 12v pixels dropped a higher voltage, it was still the same percentage of drop when compared to the 5V dropping to 3v.  Now this is where it gets a bit complicated.  Say that the power has dropped to 3v at the end of that hypothetical string of 5v pixels – normally a pixel chip requires around 5v of power to operate but some pixels actually can take lower levels of power and still maintain operation and a the same level of light output.  For example, WS2801 pixels can run on voltages from 3.3 to 5.5v DC (12v strings that use 2801 drop the power down by using resistors) and maintain a constant current to the LED (thus ensuring they are all the same brightness) but TM1804’s are constant voltage and the LEDs will dim over long runs without power injection.  There are also side issues such as power losses on 12v pixels but that maybe a mute issue for those in snowy areas that find value in a “heated” pixel.
We would always recommend testing your build before and after construction because nothing will be more frustrating than putting all this up only to learn that you’ll need to re-wire it because of power issues.
What do you do if the power drop is too great?  We’ll you’ll need to split the power about half-way down the line, and then using a higher gauge wire (14 AWG and up is always a good start) from the power supply up at the start of the string, carry the power down to the split – the data will pass right through (it is regenerated at each pixel).  This diagram shows and example of the power injection:


Controller Placement

We’ve already touched upon the three different types of controllers – centralized, de-centralized and a combination approach.  Now it comes down to the actual placement of those controllers.  There are three additional major items to consider here, other than the controllers themselves – where the DMX is coming from (and how much it costs), the overall cost of the controller(s) and distances from controller to the strings they are driving.
DMX Signal Source – There are two major methods of DMX signal generation:
·         Serial based DMX output dongles – these devices (such as the ActiDongle) connect to a PC via a USB port and appear usually a as “COM” port or similar interface.  Each dongle outputs 512 DMX channels to an RS-485 line (see our blog article on RS485.)  These are used with controllers that take a DMX over RS485 connection.
·         Ethernet based DMX output – some controllers (AlphaPix 4 and the AlphaPix 16) take a direct Ethernet connection into the controller and use the E1.31 protocol which is basically DMX running over TCP/IP (running over Ethernet.)  While somewhat more complicated to setup, E1.31 offers huge numbers of DMX universes in a single data cable.  This means that you could have as many as 16,320 DMX channels on a single CAT5 Ethernet cable to a single controller.
Controller Costs – In almost all cases, it is less expensive to hook up a E1.31 based controller to drive pixels (as low at $129 USD) vs an RS485 based dongle ($50) and a pixel controller ($40) - the difference being that the E1.31 controller could handle 2,720 pixels and the RS485 based controller could only handle 170 pixels.
Here are some of the thought processes I go through when looking at this design:
·         If the controller supports forward or reverse addressing, I'm not limited to putting the controller on the left side with the strip going to the right (left right addressing is easier and more common.)  So when I look at the house I see at the front corner of the garage two different start/ends occur which could allow me to place one dual output controller there along with a power supply.  I also see the same thing above the front door where the top of the bottom sections of the house come to two points.  All HolidayCoro pixel controllers support forward and reverse addressing.
·         I know I’ll need four outputs since we have already determined that we need four separate sections of strip.  I also can tell that I need to keep the strip under about 30ft to avoid power problems so for the section on the top of the house (30 LED/10 ICs or Pixels per Meter) I’ll need to do power injection but for the other sections I should be ok for power injected at one end of the strip.  Again, you'll need to do your own testing here to determine maximum length.
·         I could place a single, centralized controller on the wall above the front door but I need to consider that it will have long lengths from the controller to the start of the strings (much more so for the string on the front of the garage) and while I could use ghost pixels to repeat the distance, I still would be using a large controller in an awkward spot and I would have a controller with a lot of extra outputs that I won’t use (in this design.)
·         I could use single or dual output controllers and place them at the corner of the garage and above the front door and that would remove my issues with distances but would still mean that I would have controllers in an awkward spot directly in the front of the house.

So, what was the final design decision?  A centralized controller.  This was selected for the following reasons:
·         Ghost/Phantom/Null pixels can be used to repeat the signal from the centralized location where the controller is located to the start of the string.  That resolves the issue with distance (within reason.)
·         The additional outputs of the controller (16 outputs total) can be used for other elements within the display.
·         In this design the power requirements (324 watts) match up well with a single 350 watt power supply.  This isn't to say that more power could be required - test, test, test!
·         This allows a E.131 connection without additional dongles – so one cable for all the channels required.
Here is a photo showing the final layout:

·         The green lines are power (12v DC in this case) using a minimum of 16 AWG wire
·         The purple lines are data (SPI) signals from the controller to the strip
·         The green circles are where power injection on the strip occurs
·         The blue square is the 350 watt power supplies (or supply)
·         The red square is 8 to 16 output pixel controller
·         The orange lines are the pixel strip
·         Black dots are estimates for locations of null/ghost pixels
Our overall hardware costs for this project are:
·         $175 for AlphaPix pixel controller
·         $40 for 12v, 350w power supply
·         $70 for misc wire (extensions and bare wire)
·         $60 for mounting substrate and clips (estimate)
·         $70 misc additional costs (screws, connectors, etc)
·         $770 Total
So there you have it – while this is a very lengthy article for a blog posting, it doesn't encompass EVERY feature, function or possibility – this article should help you work out the major issues in completing a project of similar nature.  You will also notice that we have not even covered the software side of this project – setup of E1.31, configuration of the channels within a sequencing application or even issues involved with sequencing 1,308 channels which is a project unto itself.  We hope to tackle this issue in future blog articles, so stay tuned!
Please note that due to the number of requests we receive, HolidayCoro is unable to provide free design services due to the amount of time it requires to evaluate each individual solution.  We do however, offer consulting services if you should need them.
Thank you,

Here is a follow up video that shows a design process using RGB nodes:

  1. Awesome post David. I am sure I will have to read this article numerous times this summer to absorb all of the information. This is exactly what I am trying to convert to this year.

  2. Excellent post. That is exactly what I was needing to know. Thanks

  3. AWESOME, thanks for taking the time to publish this.

  4. David
    As always, a plethora of good information and logical step-by-step planning considerations. I'm at the point of determining exactly how to mount the 72 sections of 5050 dumb strips on the house (which includes outlining all facia, doors and windows - 300 ft total) and I'd like to do this such that it's removeable for off-season storage. I saw a brief mention in the article about "mounting substrate" costs, but no further details. Any thoughts on the best way to do this? Since aluminum LED strip extrusion (with snap-on diffusers) seem to be running about $10/foot, I'd like your opinion on the solution I'm contemplating. Menards and Home Depot sell metal square-shaped conduit (about 1/2" x 1/2" x 10') for between $8-$10/strip. It's made by "Wiremold" (http://www.menards.com/main/p-2285224-c-9801.htm). The 5050 strips I have are approx 10mm in width and came with an adhesive backing, so my though was to cut conduit to the length needed for each segment (e.g. a 4' x 4' window needs four 4' pieces), then (same example) create a frame by using 90 degree 2" metal corner braces. I'd then attach the 5050 strip on top of the conduit (with adhesive on the stip) then run my 18/4 alarm wire from each strip through the conduit out to the controller. Each frame, facia segment. etc could then be attached to the house with thier wires hidden in the conduitand be removed from the house for off-season without too much difficulty. Thoughts?

    1. We have exactly what you are looking for - an aluminium and acrylic mounting substrate for 12mm RGB strips. It can be found here:


    2. Awesome post thanks!!! I'm working on a similar layout myself.. What waterproofing containers did you go with? Thanks again for the knowledge

    3. There is not specific "standard" for any waterproof housing for controllers as the method used to mount them and the number and type of controllers and power supplies will vary by installation.

  5. Thanks for the Plethora of info. It's quite overwhelming, Im not understanding exactly how you run the power. What I'm getting is you would just simply run wire from the 350w PS to your strips. Or am Im still not getting it? The other is can you explain the whats and how's of these "ghost/null pixels", I don't understand them? Thanks again.

    1. Sure - you can run the power directly to the pixels but you will have to send power to the controller for it to work. The reason people run power "through" the controller is the ease of setup since you already have to have a ground and data for the pixels - so it is just easier to wire up. Power injection would be directly from the PSU to the pixels. A null pixel is simply just a pixel that exists to repeat data from one pixel to another pixel due to the distance limits in most pixels (often 15-20ft between pixels).

  6. David,

    Noob here. Thanks for the detailed writeup. I have a few questions.

    1. Why did you choose a light strip with 3 LEDs per pixel instead of 1 LED per pixel? It seems less granular that way. Was that to keep the pixel count down? Is this typical with regard to house outlining?

    2. Since I'm new I need to get some items and start practicing now. Most of the items on your site say that they won't ship until May. Where can I get my hands on products now so I can get a head start?

    3. I suspect that the software will be the hardest part. I want to only start with outlining the house and not have any trees, candy canes, etc. Is there some "stock" set of sequences for a house outline?

    4. Do I need to keep my PC connected for the show to work? Can I put the sequencing on a Raspberry Pie? Or do I just download the sequencing to the controller and it runs on its own?

    Thanks for your help.

  7. 1 - Density of pixels. 70% of house outlines are 30/10 because it is a good mix of size for most viewing distances. If you get pixels too close, say a red, green, red, green and view them from a distance, they color mix. With 30/10 the pixel is 4" wide so mixing isn't an issue in nearly all cases. Additionally 30/30 is hell to work with because of the buck converters since you don't have three LEDs in series - cutting it becomes a major pain and we never recommend it (30/30 or 60/60) for any house outline.

    2 - You are looking at pre-sale items, which ship in May, many of those items can also be purchased for shipping now. There is a link in each of those items back to the currently shipping product.

    3 - No, there is no stock outline because each outline is 100% unique. Don't worry - it isn't as hard as you think!

    4 - Start by doing your sequences on a PC. Once you have that mastered and you feel you have the skills to build a Pi, go for it. It won't be a cake walk though.

  8. Wow, found this really, really useful..Thank you!!
    I am in stage of planning my design now and have used your spreadsheet to find out I would need a total of 178 feet of pixel strip to outline house and windows and using the 30/10 strip this would be 1650 DMX channels.

    I am also looking to add 4 of your singing Christmas trees to the display and possibly add some mini trees. The piece that is confusing me at the moment, is wether i would need one controller for the pixel strips, singing trees and any mini trees, or separate ones for each? Also, I am yet to even venture in to the sequencing itself, I was looking and can see there are pre-sequenced songs available for singing xmas trees, and also for outlines - but not sure on how easy/complex it is to join the 2?

  9. Hi,
    Very, very helpful article have read it many times over already!!
    I am finalising my list for a pre-order but have a couple of questions if you don't mind?
    So,I have used the spreadsheet linked to above and for my house outline and window outlines I will need 178ft of 30/10 strip requiring 1650 DMX channels.
    I would also like to get 4 singing Xmas trees, and build some mini trees.

    Question is, do all components have to run off same controller, i.e the singing trees, outline and any mini trees?
    How do I determine the number of DMX channels for the singing trees and add to the spreadsheet to get my totals?
    I have not looked in depth at the sequencing yet, but see there are some ready made song sequences both for the singing trees and the outline, can these be combined? If so is it relatively easy?

    Final question (sorry) If i purchase the 178ft of 30/10 smart pixels, do I need to run as 1650 DMX channels, or can I dumb it down to start with and group the pixels in bigger sections to limit the amount of sequencing? Do the strips come with standard chase type sequences that can be called to simplify the programming?

  10. It is rare for a pixel controller used for one item (megatree or house outline) to be used on another element within the same display. Part of this is about distance limit the pixel data can travel (usually 15 to 30ft) but also the loss of power that occurs over longer distances. So, I would figure on using one controller per element - if you can combine elements, you'll know where that is possible. I'm not sure which singing trees - RGB or LED legacy lights but that could be possible via the RS485 output to another controller (DC or AC).

    No, it isn't easy to combine sequences but you can use timings from one sequence to help sequence other songs. It won't be as hard as you think it is.

    You will NOT run 1650 DMX channels on a single run in almost all cases, you will use several outputs of a controller. Once you lay out the lights, think about where they will be placed on the house, then drive from there.

    No, strips do not have any "sequences" in them - this comes only from the controller and from there, the software.

  11. On the 2 13.6' sections above the big garage. If I made that one big run.Do I have to put the extra power supply between to two 13.6' or could I put it at the end of the two 13.6' section?

    what project would you use the 30/30 or the 60/60 on ?

    1. I would NEVER recommend 30/30 to 60/60 pixel strip on house outline:

      * You have to cut the strips so that the buck converter is properly located within a given section (assumes 12v since 5v strip would be nuts to use)
      * At any typical distance (50, 100ft) it isn't possible to make out the difference in 30/30 and 30/10.
      * It is very expensive to use 30/30 or 60/60.
      * It requires a HUGE number of channels and/or runs

      On the question about were to power inject, it could be either the center or the end, it really just depends on where your controller is located and how it makes the most sense to run the power wires.

  12. Can the middle of a line be the only place where power is placed? I ask because on my garage outline, it would be more efficient to connect power at the middle of the top section.

    1. No, power can be injected anywhere along the line - at the start, middle, end - it really depends on the situation including the location of the power supplies, wiring path, power consumption in the pixels, etc.

  13. This comment has been removed by a blog administrator.

  14. I like the neon look but am afraid my viewing distance will not be enough for it to work with 30/10 strip. My house is about 30 feet off of my street so would RGB nodes (2"spacing)be a better choice for my application? I know I won't get my neon look but it will be cleaner and won't be as clunky as the 30/10. Is that a safe assumption?

    1. How "clunky" it will be is a determination made by the designer. For one person this will be fine, for another it won't be good for them. If you'd like tighter pixels, consider 60/20 strip: http://www.holidaycoro.com/Smart-Pixel-LED-RGB-Strip-60-LEDs-m-20-Pixels-m-p/708-white.htm

  15. Now that our displays are getting bigger using RGB Holidaycoro should produce a Null Pixel Kit. Great job with everything David thank you for your help and great products.

  16. Hi - What is the maximum distance of the "longest" green line (power) and the purple line (signal) in the above house picture.

    1. For signal this will vary - it can run from 15 to 45 feet based on the wire, external interference and other factors. We generally say about 25ft is a safe distance. For power - this will vary based on the wire gauge, voltage and number of lights. So there is no one single answer for this.

  17. on the front garage line run you are using ghost/null pixels (unlit string of RGB pixels?)to carry the data signal from the controller to that run? basically using the CIs of the string to relay the data from one CI to the next to get the data signal to the end of the ghost/null string and to the beginning of the string run on the front garage outline?

    how long can a data signal be run from the controller using traditional wiring before the ghost/null pixel method would be needed to relay the data signal? 15 to 20 feet?

    also, for power injection. is it possible to use a stand alone 12v power source to inject power into a section that is experience power loss? basically can I buy one of your 12v power sources and run the + and N from it straight into the + and - of a section of RGBs that is experiencing power loss or does the power injection need to be ran all the way from the controllers power source for some reason? I'm guessing that if the needed injection location was too far away it wouldn't even be possible to run power injection from the controllers power source would it?

  18. *Edited*

    on the front garage line run you are using ghost/null pixels (unlit string of RGB pixels?) to carry the data signal from the controller to the front garage line run?? basically using the CIs of the ghost/null string to relay the data from one CI to the next to get the data signal to the end of the ghost/null string and to the beginning of the string run on the front garage line??

    if so, how long can a data signal be run from the controller or end of a string run using traditional wiring before the ghost/null pixel method would be needed to relay the data signal? 15 to 20 feet?

    also, for power injection. is it possible to use a standalone 12v power source to inject power into a section that is experiencing power loss? basically can I buy one of your 12v power sources and run the + and - lines straight from the power source and into the + and - of a section of RGBs that is experiencing power loss? Or does the power injection need to be ran all the way from the controller’s power source for some reason? I'm guessing that if the needed injection location was too far away it wouldn't even be possible to run power injection from the controller’s power source would it?

    1. Yes, null pixels only serve to repeat data from one pixel to another over longer distances.

      Typically 20-25ft is fine.

      Yes, it is possible to use a different power supply for power injection. Contact us with your project design and we can provide more specific advice based on the project.

  19. I've recently placed an order with Holiday Coro for everything that I think I will need for my display. I've extensively read all of your articles and think I have a pretty firm grasp on things so far. If I run into any issues during the set up I'll make sure to contact you for advice.

    Thanks again for everything and all your great detailed videos and informative articles. They both have been very helpful.

    -Jake Kaech

    1. Happy to help! Best of luck with your project!

  20. About to order a bunch of the "Brilliant Bulb" c9 lights. I am not finding much reference to mounting the pixels on rain gutters or along shingles. What products have proven to work with these pixels? - staple gun not an option ;)

    1. Each house and mounting method is going to be different. Typically we suggest to mount the bulbs below the gutter - this reduces issues with snow and mounting and you can use 1/2 PVC pipe and our clips: http://www.holidaycoro.com/Half-Inch-Lexan-Pipe-Mounting-Clip-p/770.htm For some other situations you may wish to use our Brilliant Bulb mounting strip: http://www.holidaycoro.com/Mounting-Strips-for-Brilliant-Bulbs-p/786.htm

  21. About to order a bunch of the "Brilliant Bulb" c9 lights. I am not finding much reference to mounting the pixels on rain gutters or along shingles. What products have proven to work with these pixels? - staple gun not an option ;)

    1. No - staples are surely not the answer with pixels. Each situation is different because each house is different but for a vast majority of houses, mounting the bulbs to 1/2" PVC pipe works best and then mounting the PVC pipe with these: http://www.holidaycoro.com/Half-Inch-Lexan-Pipe-Mounting-Clip-p/770.htm There is a photo on that page with and example of that mounting method.

  22. On the square node 12v dc, 2811 for the roof line and outline on the house.

    Do you sell C9 Topper to add on those or are they not needed. I seen you do sell the the c9 topper w/a different type of pixel but those are double the price?

    1. If you are going with a bulb like the Brilliant Bulb, I would use a purpose made product, not a cover over a square 8mm LED as these can have issues with coming off the pixel.

  23. The square node pixels do not need any type of diffuser "topper" and I don't know of any that could be used with that style with out modification. The brilliant bulbs that come with the diffusers are a completely different kind of pixel than the typical square node pixel.


    1. That is correct - our Brilliant Bulbs actually use two 5050 RGB LED's not one 8mm LED as used in some "bulb" type lights.

  24. Mic41
    Can I cut a 30pixelx/meter ws2811 5m strip in half and put in on 2 different outputs on a Alpha pix 16 controller? To use one 16ft strip for 2 outside corners of my house. I want to outline my house. 2story farm house with 158ft of sofit. My question is for the corner post's. Also where do I start the pixel addressing? On the lowest level of pixels and then work my way to the gable?

    1. Yes, you can cut 30/10 pixel strip around every 4" (one pixel) and use it as needed. How you address your pixels is completely up to you - typically we start in the lower left and work to the right.

  25. I bought the RGB House Outline package - how do I send power to strip with that?

    1. I'd recommend contacting our support at www.holidaycoro.com/support

  26. For the house outline kit, is it worth getting a 16 port controller for my setup? If the amps going to each strand of 50 smart 2811 led's is 3amps. That would limit the controller to handle one strand per output on each side if there are dual power supplies. If I am doubling up the strands so, 100 in each port, 4 ports total used. That would have me using 24 amps which would allow me one more strand to be connected to that side of the controller safely? 27 amps used(full white) with 3 ports in the controller (one side,350 watt power supply)not able to be used?

    1. When someone, including HolidayCoro is doing a design they can either go with more power injection and a lower per-output use or more outputs but less power injection. For advanced users, power injection isn't uncommon but we tend to make things as easy as possible for customers and often use more outputs so that more complex wiring isn't required. In some cases, power injection might not even be that much cheaper by the time tee's and additional wiring are included.

  27. What software are you using to do the house layout?

    1. We use a specialised CAD application - any of the free CAD applications or even visio work great for layout.

  28. Great Article This really helped ! In the image above it shows power injection from the controller box to the top roof. So when injecting power you must do so from the controller? what type of wire would be used in that situation?

    1. For power injection, this wire works well if you want to solder your own connections: http://www.holidaycoro.com/100ft-3-Conductor-18-AWG-Extension-RGB-Lights-p/698-100.htm

      Power injection can be made from multiple power supplies but contact HolidayCoro if your design requires power injection from more than one/two power supplies on a single controller.

  29. This comment has been removed by a blog administrator.

  30. Great article! I'm just starting out and wanted to do a simple element this year, outlining the front fascia areas that are viewable from the street. Can the C7/C9 smart pixels be attached using gutter clips? I've searched the site and that point wasn't made clear.

    I'm going for a more traditional look that will change with basic sequencing by day and theme.

    Also -- are there any options to control the sequences without a computer hooked up the whole time directly? Thanks in advance.

    1. Yes, most "gutter" clips can be used with our brilliant bulbs. If you'd like to test them, a sample bulb can be found here: http://www.holidaycoro.com/product-p/709-sample.htm

      There is something called a Pi player that can do this but I'd only recommend it for experienced customers. In 2018, we will be releasing the EasyLights controller that has a built-in player.

  31. Hello. I have a question on the ghost/null pixels. How do you make them or do you buy them? Also, how do you splice them into the strips?

    1. A null pixel is just a pixel. It doesn't even need to be the same physical format - so you can use a node to extend the distance of a design that uses strip lights - they need to only be the same protocol. If you are just starting out, try to avoid using null pixels because they are not a magic bullet - you still need to get power to these further pixels.

  32. Very awesome post! Very helpful, whish I would have reviewed this before I purchased a couple of strips. One note, the spreadsheet was awesome but the drop down list (cell A28 on 'pixel house outline') isn't expanded to pull pixel data for customer supplied items that are input into rows 28 and below on the pixel data tab. Suggest increasing source range under data validation settings.

    Again, this post was most helpful for learning and new users. Very well thought out and organized. My search led me to this post, which led me to your site and you have a lot of nice products there. I especially like the ghost node connector, I was struggling how to make this and you have a very clean design.
